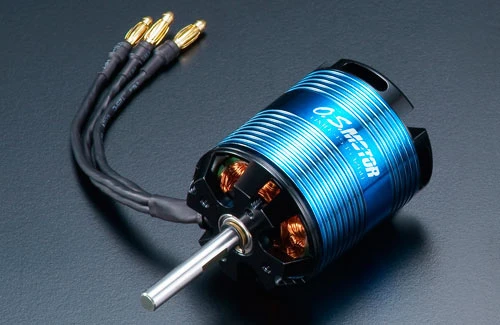

OS Engines O.S. OMH-4535-1260 Brushless Motor
Original price was: $88.99.$62.29Current price is: $62.29.
- Experience Quality, Shop with Us
- Safe Payments, the Smart Choice
- Service that stands out, online and always timely.
- Quality You Can Count On
This OMH-4535-1260 motor is designed to be used in 550-600 size helis using 6S Li-Po batteries. Every piece of this motor had been designed to help reduce friction/noise and increase the power and efficiency.

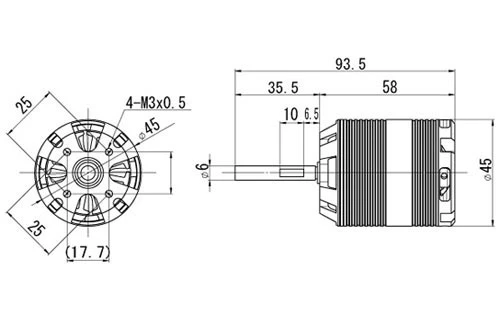

With a 45mm dia. this motor can easially be installed in almost all the existing 550-600 class helicopters without modifications. The shaft is also 35mm long enabling you to support the end with a bearing in many modern helicopter designs.
The OMH-4535-1260 is designed for sport and 3D flying on 6 cell Li-Po batteries and develops a maximum power output of 1998W (3300W for 5 seconds) at around 28,000 rpm.
• High Performance
• High Efficiency
• Great Heat Dissipation
| Specifications | |
|---|---|
| Connectors: | 4mm Gold (Inc.) |
| Max Efficiency: | > 85% |
| Poles: | 6 |
| Length: | 58mm |
| Weight: | 344g (12 oz) |
| Wire Size: | 100mm 16AWG |
| LiPo: | 6S (Rec.) |
| Turns: | 10 |
| Voltage: | 22.2v |
| Max Current: | 150A (5 seconds) |
| Current: | 90A |
| Diameter: | 45mm |
| KV RPM: | 1260 |
| No Load Current: | 3.6v/10v |
| Shaft dia: | 6mm |
| Shaft Length: | 35mm |
