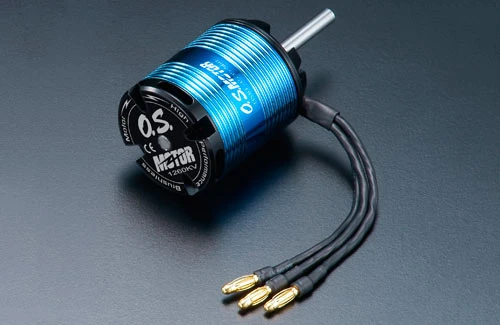

OS Engines O.S. OMH-4535-560 Brushless Motor
Original price was: $97.89.$68.52Current price is: $68.52.
- Experience Quality, Shop with Us
- Safe Payments, the Smart Choice
- Service that stands out, online and always timely.
- Quality You Can Count On
This OMH-4535-560 motor is designed to be used in 600-650 size helis using 12S Li-Po batteries. Every piece of this motor had been designed to help reduce friction/noise and increase the power and efficiency.
With a 45mm dia. this motor can easially be installed in almost all the existing 550-600 class helicopters without modifications. The shaft is also 35mm long enabling you to support the end with a bearing in many modern helicopter designs.
The OMH-4535-1260 is designed for serious 3D flying on 12 cell Li-Po batteries and develops a maximum power output of 3300W! (5550W for 5 seconds)
• High Performance
• High Efficiency
• Great Heat Dissipation

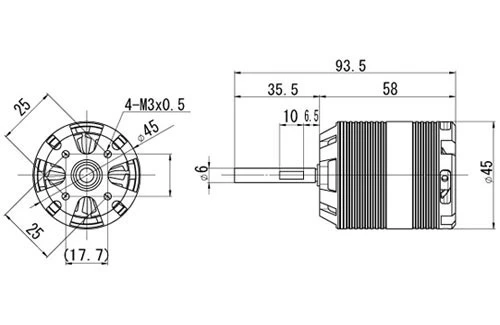

| Specifications | |
|---|---|
| Connectors: | 4mm Gold (Inc.) |
| Poles: | 10 |
| Length: | 58mm |
| Weight: | 372g |
| Wire Size: | 100mm 17AWG |
| Turns: | 10 |
| Voltage: | 44.4v |
| Max Current: | 125A (5 Seconds) |
| LiPo: | 12S (Rec.) |
| Current: | 75A |
| Diameter: | 45mm |
| KV RPM: | 560 |
| No Load Current: | 1.9A / 10V |
| Max Efficiency: | > 90% |
| Shaft dia: | 6mm |
| Shaft Length: | 35mm |
